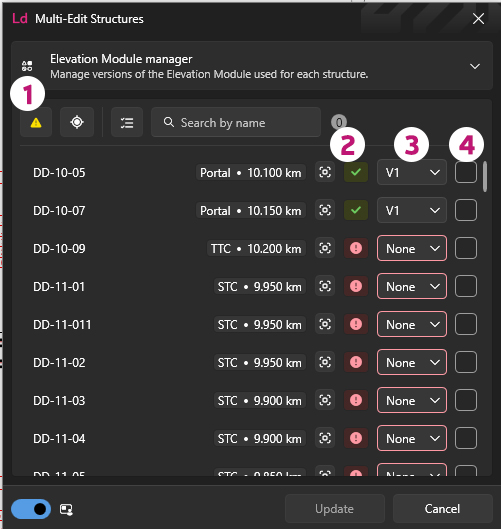

The 'Elevation Module manager' opens when clicking the 'Multi-Edit' button in the 'Structures' section of the Lineardraft Toolbar and selecting 'Elevation Module manager' from the drop-down.
It lists all structures and the current elevation module version used for each structure. The module manager enables users to:
- Identify structures that are out of date and therefore cannot be used with the Elevation Module.
- Rebuild those structures to bring them up to date with the current version of the module.
Please note: We recommend reviewing your structures after installing or updating the Elevation Module to ensure everything is fully compatible and up to date.
- Select all out of date structures: Automatically selects all structures that are not using the latest module version. Please note this will not select structures that have no existing Elevation Module version
- Structure status indicator: Shows the status of each structure. A green tick indicates the structure is up to date. A red warning indicates the structure is using an outdated module version or the module does not exist for that structure.
- Module version selector: Allows you to choose a specific module version to update the selected structure to.
- Rebuild and update: When checked, the selected structure will be rebuilt using the chosen module version.
